For the overhanging beam AB supported by a pin at A and a roller at C as shown in FIGURE Q3. The ...

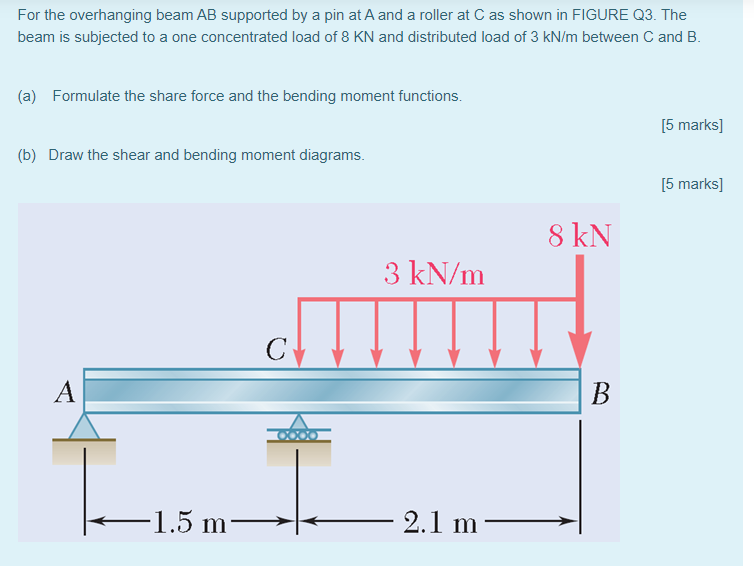

For the overhanging beam AB supported by a pin at A and a roller at C as shown in FIGURE Q3. The beam is subjected to a one concentrated load of 8 KN and distributed load of 3 kN/m between C and B. (a) Formulate the share force and the bending moment functions. [5 marks] (b) Draw the shear and bending moment diagrams. [5 marks] 8 kN 3 kN/m С А B B -1.5 m 2.1 m
